The Acorn 130 Outdoor Stairlift

Outdoor Stairlift

Make your beautiful garden in British Columbia more accessible by installing an outdoor stairlift.

Technical DetailsFind out more
Acorn Stairlifts

Why choose the 130?

  • Weather resistant to cope with diverse outdoor conditions.
  • Slimline design which can be folded away when not in use.
  • Requires no major outdoor structural changes.
  • Automotically stops when an obstruction is present.
  • Optional hinged rail to prevent trips.

Angles

Standard Indoor 130

Short seat post 40-55°
Standard seat post 29-55°
Tall seat post 23-55°

Power Swivel 130

Standard seat post 36-55°
Tall seat post 23-55°

Outdoor 130

Standard seat post 27-55°

Maximum Rail Length

10 metres 394 inches

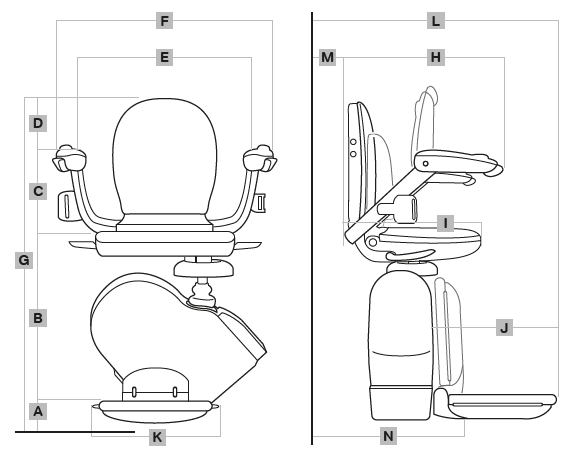

Dimensions mm inch
A Floor to top of footrest 95 3.75
B Top of footrest to top of seat (Short) (Tall) 445 (410) (505) 17.5 (16.25) (19.75)
C Top of seat to top of arms 250 9.75
D Top of arms to top of seat back 190 17.5
E Width between armrests (Wide arm version) 445 (495) 17.5 (19.5)
F Overall width 605 23.75
G Overall height to floor 980 38.5
H Length of arms from seat back 470 18.5
I Length of seat base from seat back 435 17
J Length of footrest 325 12.75
K Width of footrest 310 12.25
L Front of footrest to stringer 570 22.5
M Back of seat to stringer 13 0.5
N Folded width 310 12.25
O Minimum width required to swivel at top 670 26.25
P Distance from front of rail to stringer (Wide arm version) 215 (240) 8.5 (9.5)

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ISO 9386:2-2000 International standard for stairlifts.
Specifications
Motor output speed No greater than 0.15 metres per second
Method of drive Rack and Pinion
Power Supply 24v DC batteries
Motor Power 0.25KW
Maximum capacity 127kg
Maximum capacity HD version 159kg
Power supply input range 50-60Hz, 120-240V AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.

Acorn Stairlifts

What happens

A fully fitted Stairlift in four simple steps...

  1. Live in British Columbia and want to find the perfect stairlift for your home? Submit your contact details today and one of Acorn's representitives from Canada will be in touch to provide you with more information.

  2. Following your call, Acorn will help you schedule a free survey around a time that's best suited to you and give you a written quoatation after our initial assessment.

  3. If you decide to buy from Acorn, they will arrange an immediate installation date which should only take around an hour.

  4. After you're happy with the fitting, you have a 12-month warranty on the product. However, aftercare packages are also available to fit a range of different budgets.

Installation

Installation of the Acorn 130 Outdoor Stairlift in British Columbia

Once you have agreed on installing the Acorn 130 Outdoor Stairlift in your home, Acorn's team of experts will be round within a few days to fit the product and make your home more accessible. If required, you could also benefit from their next day installation service.

Aftercare

Aftercare for your Acron 130 Outdoor Stairlift in British Columbia

As we have partnered with Canada's leading stairlift manufacturer, you receive a full 12 month warranty on your Acorn 130 Outdoor Starlift. We believe that this is critical to establish customer confidence and overall appreciation for the product.
