The Acorn 180 Curved Stairlift

Curved Stairlift

The perfect stairlift for your curved staircase.

Technical DetailsFind out more
Acorn Stairlifts

Why choose the 180?

  • Fits easily to the staircase and not the wall.
  • Self-levelling carriage that moves along a modular rail system.
  • Extremely affordable with low running costs.
  • Additional battery pack to combat potential power cuts.
  • Installed within a couple of days for British Columbia customers.

Angles

Min
Max 58°

Maximum Rail Length

30 metres 1181 inches

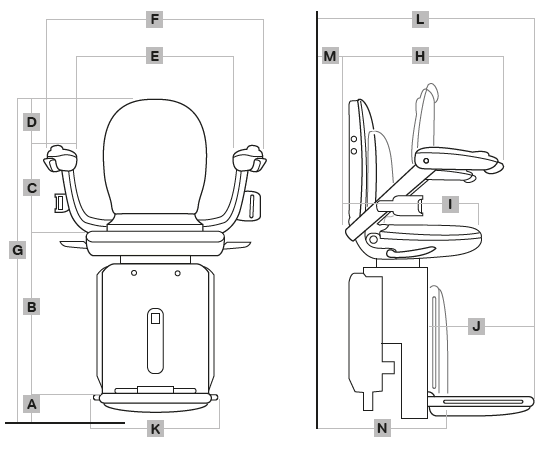

Dimensions mm inch
A Floor to top of footrest 50 2
B Top of footrest to top of seat 485 19
C Top of seat to top of arms 245 9.75
D Top of arms to top of seat back 195 7.75
E Width between armrests 480 19
F Overall width including seatbelt 620 24.5
G Overall height 975 38.25
H Length of arms from seat back 460 18
I Length of seat base from seat back 435 17
J Length of footrest 360 14.25
K Width of footrest 375 14.75
L Front of footrest to stringer 640 25.25
M Back of seat to stringer 35 1.5
N Folded width 335 13.25
O Minimum width required to swivel at top 690 27.25
P Distance from front of rail to stringer 180 7
Q Height of leg 125 (min) 650 (max) 5 (min) 25.5 (max)
R Front of drop nose to first stair 450 17.75

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ISO 9386:2-2000 International standard for stairlifts.
Specifications
Motor output speed No greater than 0.15 metres per second
Method of drive Rack and Pinion
Motor Power 0.375KW
Carriage Power Supply 29.6v D2C batteries
Maximum capacity 120kg
Power supply input range 100-240v AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.

Acorn Stairlifts

What happens

A fully fitted Stairlift in four simple steps...

  1. Live in British Columbia and want to find the perfect stairlift for your home? Submit your contact details today and one of Acorn's representitives from Canada will be in touch to provide you with more information.

  2. Following your call, Acorn will help you schedule a free survey around a time that's best suited to you and give you a written quoatation after their initial assessment.

  3. If you decide to buy from Acorn, they will arrange an immediate installation date which should only take around an hour.

  4. After you're happy with the fitting, you have a 12-month warranty on the product. However, aftercare packages are also available to fit a range of different budgets.

Installation

Installation of the Acorn 180 Curved Stairlift in British Columbia

Once you have agreed on installing the Acorn 180 Curved Stairlift in your home, Acorn's team of experts will be round within a few days to fit the product and make your home more accessible. If required, you could also benefit from their next day installation service.

Aftercare

Aftercare for your Acorn 180 Curved Stairlift in British Columbia

As we have partnered with Canada's leading stairlift manufacturer, you receive a full 12 month warranty on your Acorn 180 Curved Starlift. We believe that this is critical to establish customer confidence and overall appreciation for the product.

Contact us and arrange your FREE quote for a stairlift in British Columbia

Simply enter your details below and a trusted Acorn representative will be in touch to arrange a home survey and to provide you with your free no obligation quotation.
